Détails sur le produit
Modèle n ° Y81F-250 Taper presse de mitraille
Automation Semi-automatique Cyl.Force principal 250 tonnes
Taille de la boîte de presse 2000 * 1750 * 1000 (mm) Taille de balle 500*500 mm)
Poids de balle 250 ~ 450 (kg) Moteur Pour les véhicules à moteur
Type de puissance Hydraulique Force nominale 125 tonnes ~ 1200 tonnes
Pouvoir 15KW ~ 270KW Tension 21.5Mpa, personnalisé
Capacité de production 5 sets / mois Type entraîné Hydraulique
Note automatique Semi-automatique
Mettre en évidence

2000*1750*1000mm Press Box Hydraulic Scrap Baler

,

500*500mm Bale Size Metal Baler Machine

,

250~450Kg Bale Weight Scrap Metal Compactor
Laisser un message
Description de produit
Y81f-250 Hydraulic Steel Shaving Baler Compress Machine OEM
Product Overview

The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, or other shapes to optimize transportation, reduce costs, and improve logistics efficiency.

Key Features
  • Ideal for steel plants, recycling centers, and metal processing industries
  • Hydraulic drive system with manual or PLC automatic control options
  • Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
  • No need for fixed foot screws - portable operation
  • Diesel engine compatible for areas without power supply
  • Extrusion force from 63 to 400 tons (10 available grades)
  • Productivity ranging from 4 to 40 tons per shift
  • Fully customizable compression chamber and bale dimensions
Technical Specifications
Attribute Specification
Product Name Y81 series hydraulic metal baler
Condition New
Application Scrap metal processing
Nominal Force 125Tons ~1200Tons
Driven Type Hydraulic
Power 15KW~270KW
Voltage 21.5Mpa (Customizable)
Color Customizable
Automatic Grade Semi-Automatic
Commercial Terms
Term Detail
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Overseas engineer support available
Model Specifications
Model Main Cyl.Force (ton) Press Box Size (mm) Bale Size (mm) Bale Weight (kg) Motor (KW)
Y81F-125 125 1200*700*600 300*300 50-70 15
Y81F-160 160 1600*1000*800 400*400 100-150 22
Y81F-200 200 1600*1200*800 400*400 120-220 37
Y81F-250 250 2000*1750*1200 500*500 300-500 60
Y81F-315 315 3000*2500*1200 600*600 400-700 90
Y81F-315 315 3500*3000*1300 700*700 600-1000 90
Y81K-315 315 4000*3000*1300 700*700 800-1200 135
Y81F-400 400 3500*3000*1300 700*700 800-1300 135
Y81K-400 400 4000*3000*1300 700*700 900-1300 135
Y81F-500 500 4000*3000*1300 700*700 900-1500 135
Y81K-500 500 4000*3500*1300 700*700 900-1600 135
Y81F-600 600 4000*3000*1400 700*700 1000-1700 180
Y81K-600 600 4000*3000*1300 700*700 1100-1700 180
Y81F-800 800 4000*3500*1400 700*700 1200-1800 180
Y81K-800 800 4000*3500*1400 700*700 1200-1800 180
Y81F-1000 1000 5000*3500*1500 700*700 1300-1900 225
Y81K-1200 1200 5000*3500*1500 700*700 1400-2000 270
Product Images

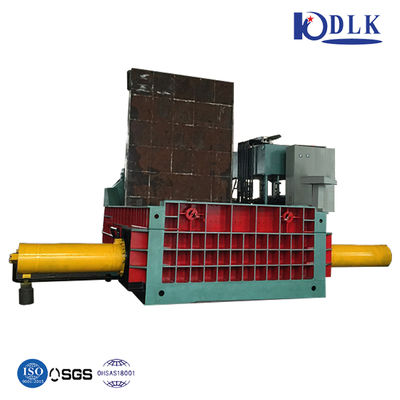

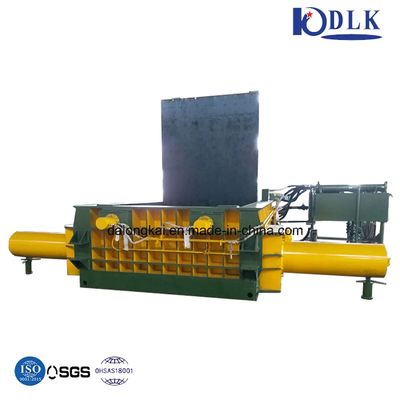

Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 0
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 1
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 2
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 3
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 4
Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight 5
