WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate

  • WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
  • WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
  • WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
  • WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
  • WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
  • WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
Certification ISO, SGS
Quantité de commande min 1
Prix 53000

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Numéro de modèle. WS-800 Taper Défibreur de mitraille
Automation Automatique Force de coupe maximale 800 tonnes
Longueur de lame 1600MM Puissance de tour 248,9 kW
Taille de cisaillement 420/300/500/600mm Taux de production 12-18t/heure
Force nominale 400ton Type entraîné Hydraulique
Longueur maximale 1600MM Tension 21,5MPA
Note automatique Automatique Pouvoir 180 kW
Force de coupe maximale (Kn) 8000
Mettre en évidence

800ton Max Cutting Force Gantry Shear

,

1600mm Blade Length Scrap Metal Shear

,

12-18t/H Production Rate Horizontal Scrap Cutting Machine
Laisser un message
Description de produit

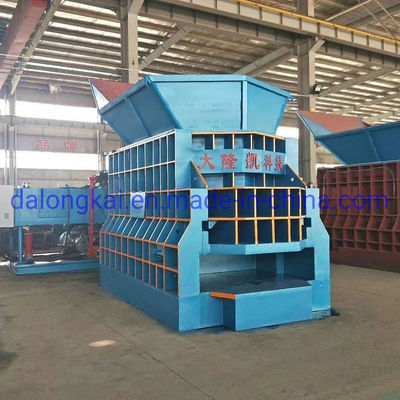

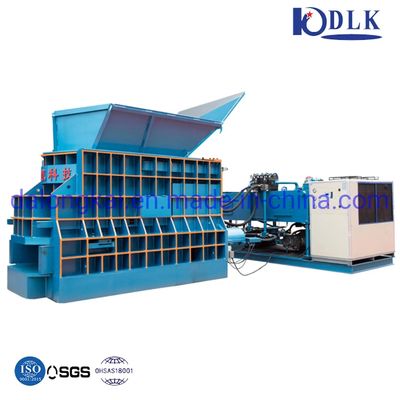

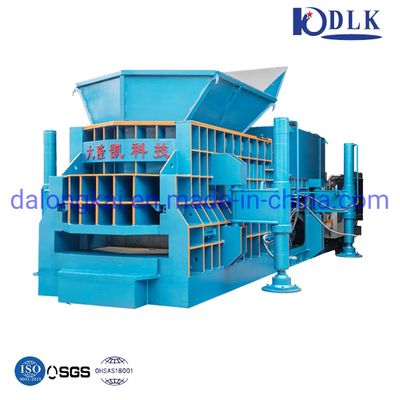

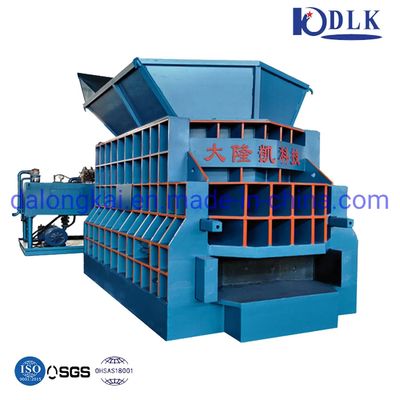

WS-800 Horizontal Scrap Cutting Machine
Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With advanced technology, modern production lines, and comprehensive testing facilities, we produce a wide range of hydraulic scrap balers, shears, and related equipment for global markets including Russia, India, South Africa, and Southeast Asia.
Our machines are designed for scrapyards, steel mills, recycling facilities, and nonferrous/ferrous smelting industries.
WS Horizontal Metal Shear Applications
This scrap shear provides economical processing with easy operation and flexible transportation via roll on/roll off system. Available in various models, including HPM series with manual belting.
Key Features
  • Horizontal structure with optional manual or conveyor-assisted feeding
  • PLC control and push-button operation for safety and reliability
  • High production output
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 0 WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 1

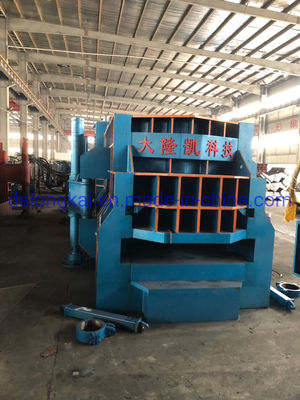

Our Factory
WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 2 WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 3 WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 4 WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 5
Certification
WS-800 Automatic Gantry Shear with 800ton Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate 6
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For user-caused issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome visits to our factory at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429, China). We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We're a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
1. Third-party assessed with national patents and CE/ISO certifications.
2. Factory inspections welcome - conveniently located near Shanghai Pudong airport.
3. Specialists in hydraulic balers and shears with proven quality.
Q5: Is your price competitive?
We offer the best factory price for our high-quality machines, backed by superior service.
