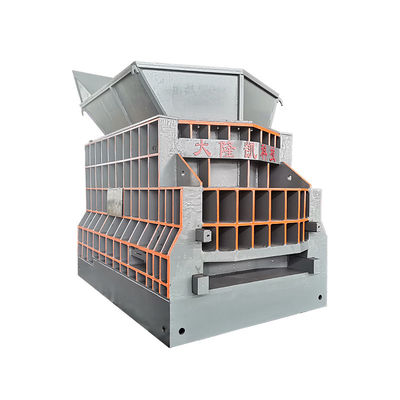

WS-630E VFD Energy Saving Scrap Metal Shear with 630 Tons Cutting Force and 1400mm Blade for 30% Power Reduction

  • WS-630E VFD Energy Saving Scrap Metal Shear with 630 Tons Cutting Force and 1400mm Blade for 30% Power Reduction
Lieu d'origine Jiangsu, Chine
Nom de marque DLK
Certification CE, ISO 9001
Numéro de modèle WS-630E
Quantité de commande min 1 ensemble
Prix USD 88000-98000 per Set
Détails d'emballage Emballage sous film plastique avec cadre en acier, transport de conteneurs
Délai de livraison 25-35 jours ouvrables
Conditions de paiement LC, T/T
Capacité d'approvisionnement 10 ensembles par mois
Détails sur le produit
Modèle WS-630E Type de lecteur variateur de fréquence
Force de coupe maximale 630 Tonnes Longueur de la lame 1400 millimètres
Taille de cisaillement 300/420 millimètre Puissance nominale 90 kilowatts
Puissance d'Avg 63-72 kilowatts Économie d'énergie 20 à 30%
Système de contrôle API + VFD + télécommande Refroidissement Air forcé 52P
Pression hydraulique ≤ 26 MPa
Mettre en évidence

VFD Energy Saving Shear

,

Smart Hydraulic Metal Cutter

,

Low Power Scrap Processor
Laisser un message
Description de produit
WS-630E VFD Energy Saving Scrap Metal Shear 1400mm Blade 630 Ton 30% Power Reduction Smart Hydraulic Cutter
WS-630E Variable Frequency Drive Energy Saving Scrap Metal Shear

The WS-630E integrates smart Variable Frequency Drive (VFD) technology into the proven WS-630 platform, achieving 20-30% energy savings compared to fixed-speed hydraulic shears. The intelligent control system automatically adjusts motor speed and pump output based on actual load conditions, reducing both electricity consumption and operational costs.

Energy Saving Technology
  • VFD Smart Control: Automatically matches motor RPM to hydraulic demand, eliminating wasted energy during idle and low-load phases
  • 20-30% Power Reduction: Typical energy savings of 25% translates to significant annual electricity cost reduction
  • Soft Start Function: Eliminates high inrush current, reducing stress on electrical components and extending motor life
  • Load Sensing Hydraulics: Pump output adjusts in real-time based on cutting resistance for optimal efficiency
  • Energy Monitoring Display: Real-time power consumption data shown on the PLC touch screen
  • Eco Mode Operation: Automatic standby power reduction when machine is idle between cycles
Applications

Ideal for environmentally conscious recycling facilities, operations in regions with high electricity costs, and companies targeting green certification standards. Suitable for processing all standard scrap metal types including steel profiles, pipes, plates, and structural parts.

Technical Specifications
Parameter Specification
Model WS-630E
Drive Type Variable Frequency Drive (VFD)
Max Cutting Force 630 Tons
Blade Length 1400 mm
Shear Height 300/420 mm
Cutting Speed 3-4 times/min (load-adaptive)
Processing Capacity 8-12 tons/hour
Rated Motor Power 90 KW (VFD Controlled)
Average Power Consumption 63-72 KW (30% energy saving)
Pump Type A4V250 x 2 (Load-Sensing)
Hydraulic System Pressure ≤ 26 MPa
Control System PLC Touch Screen + VFD Module + Remote Control
Energy Monitoring Real-time kW and kWh Display
Cooling System Forced Air Cooler 52P
Power Supply 380V/3P 50Hz
Machine Weight 36 Tons
Our Service
  • 24/7 technical support with energy optimization consultation
  • One year warranty including VFD system components
  • Energy savings performance guarantee with commissioning
  • Remote monitoring and diagnostic capability
  • OEM & ODM customization available
Request an energy savings analysis for your specific application today.
